Population class for high-dimensional simulations. More...

#include <ffpopsim_highd.h>

Inheritance diagram for haploid_highd:

Collaboration diagram for haploid_highd:

Public Member Functions
	haploid_highd (int L=0, int rng_seed=0, int number_of_traits=1, bool all_polymorphic=false)
	Default constructor. More...

virtual	~haploid_highd ()
	Destructor. More...

double	get_mutation_rate ()

void	set_mutation_rate (double m)

bool	is_all_polymorphic ()

vector< poly_t >	get_polymorphisms ()

vector< poly_t >	get_fixed_mutations ()

vector< int >	get_number_of_mutations ()

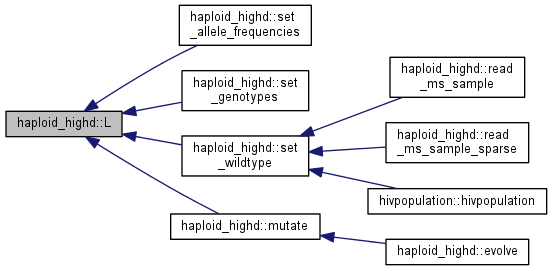

int	L ()

int	get_number_of_loci ()

int	N ()

int	get_population_size ()

int	get_generation ()

void	set_generation (int g)

int	get_number_of_clones ()

int	get_number_of_traits ()

double	get_participation_ratio ()

int	set_allele_frequencies (double *frequencies, unsigned long N)
	Initialize population in linkage equilibrium. More...

int	set_genotypes (vector< genotype_value_pair_t > gt)
	Initialize the population with genotype counts. More...

int	set_wildtype (unsigned long N)
	Initialize a wildtype population (00...0) More...

int	track_locus_genealogy (vector< int > loci)
	Designates as set of loci to have their genealogy tracked. More...

void	add_genotype (boost::dynamic_bitset<> genotype, int n=1)
	Add the genotype specified by a bitset to the current population in in n copies. More...

int	add_trait_coefficient (double value, vector< int > loci, int t=0)

void	clear_trait (int t=0)

void	clear_traits ()

void	set_random_trait_epistasis (double epistasis_std, int traitnumber=0)

int	add_fitness_coefficient (double value, vector< int > loci)

void	clear_fitness ()

void	set_random_epistasis (double epistasis_std)

int	evolve (int gen=1)
	Evolve for some generations under the specified conditions. More...

int	bottleneck (int size_of_bottleneck)
	Cause a bottleneck in the population size. More...

unsigned int	flip_single_locus (int locus)
	Flip a spin at a specific locus in random individual. More...

void	calc_stat ()
	Calculate trait and fitness statistics and allele frequences. More...

void	unique_clones ()
	Remove duplicate clones. More...

vector< int >	get_nonempty_clones ()
	Obtain a list of the good clones. More...

int	random_clone ()
	Get a random clone from the population. More...

int	random_clones (unsigned int n_o_individuals, vector< int > *sample)
	Sample random individuals from the population. More...

string	get_genotype_string (unsigned int i)

int	distance_Hamming (unsigned int clone1, unsigned int clone2, vector< unsigned int * > *chunks=NULL, unsigned int every=1)

int	distance_Hamming (boost::dynamic_bitset<> gt1, boost::dynamic_bitset<> gt2, vector< unsigned int * > *chunks=NULL, unsigned int every=1)
	Calculate Hamming distance between two sequences. More...

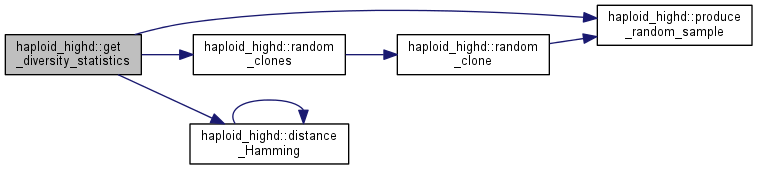

stat_t	get_diversity_statistics (unsigned int n_sample=1000)
	Calculate diversity in the current population (Hamming distance between pairs of sequences) More...

stat_t	get_divergence_statistics (unsigned int n_sample=1000)
	Calculate mean and variance of the divergence from the [00...0] bitset. More...

double	get_allele_frequency (int l)

double	get_derived_allele_frequency (int l)

double	get_pair_frequency (int locus1, int locus2)
	Get the joint frequency of two alleles. More...

vector< double >	get_pair_frequencies (vector< vector< int > > *loci)
	Get the joint frequency of two alleles, for a vector of allele pairs. More...

double	get_chi (int l)

double	get_derived_chi (int l)

double	get_chi2 (int locus1, int locus2)

double	get_LD (int locus1, int locus2)

double	get_moment (int locus1, int locus2)

void	set_trait_weights (double *weights)

double	get_trait_weight (int t)

double	get_fitness (int n)

int	get_clone_size (int n)

double	get_trait (int n, int t=0)

vector< coeff_t >	get_trait_epistasis (int t=0)

stat_t	get_fitness_statistics ()

stat_t	get_trait_statistics (int t=0)

double	get_trait_covariance (int t1, int t2)

double	get_max_fitness ()

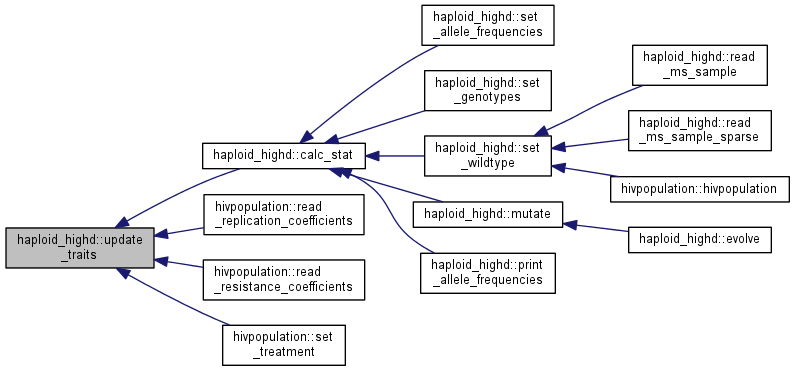

void	update_traits ()
	For each clone, recalculate its traits. More...

void	update_fitness ()
	For each clone, update fitness assuming traits are already up to date. More...

int	get_divergence_histogram (gsl_histogram *hist, unsigned int bins=10, vector< unsigned int > *chunks=NULL, unsigned int every=1, unsigned int n_sample=1000)
	Get histogram of divergence from the [00...0] bitset. More...

int	get_diversity_histogram (gsl_histogram *hist, unsigned int bins=10, vector< unsigned int > *chunks=NULL, unsigned int every=1, unsigned int n_sample=1000)
	Get histogram of diversity in the population (mutual Hamming distance) More...

int	get_fitness_histogram (gsl_histogram **hist, unsigned int bins=10, unsigned int n_sample=1000)
	Calculate histogram of fitness from traits. More...

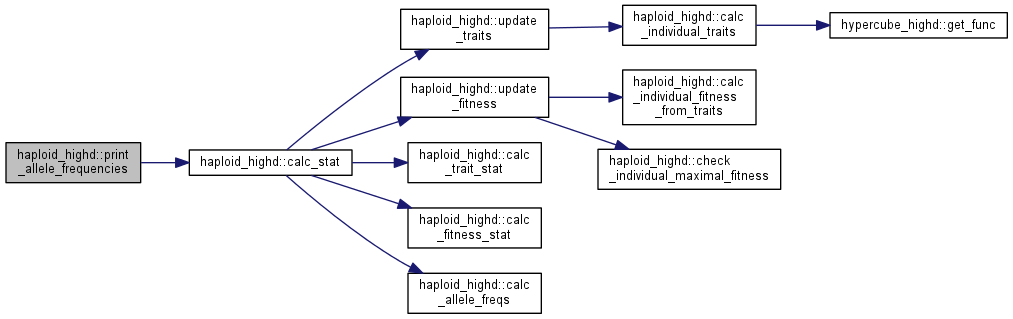

int	print_allele_frequencies (ostream &out)
	Print all allele frequencies into a stream provided. More...

int	read_ms_sample (istream &gts, int skip_locus, int multiplicity)
	Read the output of Hudson's ms and use it to initialize the genotype distribution. More...

int	read_ms_sample_sparse (istream &gts, int skip_locus, int multiplicity, int distance)
	Read the output of Hudson's ms and use it to initialize the genotype distribution. More...

Public Attributes
hypercube_highd *	trait

vector< clone_t >	population

int	carrying_capacity

double	outcrossing_rate

double	crossover_rate

int	recombination_model

bool	circular

double	growth_rate

multi_locus_genealogy	genealogy

Protected Member Functions
int	get_random_seed ()
	Get a random seed from /dev/urandom. More...

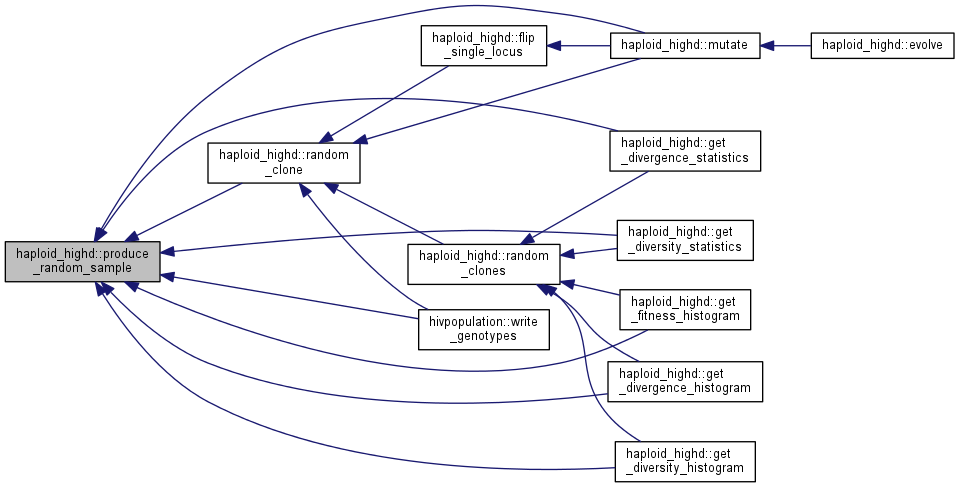

void	produce_random_sample (int size=1000)
	Produce and store a random sample of the population for stochastic processes. More...

int	mutate ()
	Mutate random clones at random loci (all loci) More...

int	select_gametes ()
	Generate offspring according to fitness (selection) and segregate some for sexual mating. More...

double	relaxation_value ()
	Get the log of the exp-average fitness plus relaxation term. More...

double	get_logmean_expfitness ()
	Get the population exp-average of fitness, used for keeping the population size fixed. More...

unsigned int	flip_single_locus (unsigned int clonenum, int locus)
	Flip a spin (locus) in individual. More...

void	shuffle_genotypes ()

int	new_generation ()

int	partition_cumulative (vector< unsigned int > &partition_cum)
	Calculate the cumulative partition of sequences into clones. More...

int	provide_at_least (int n)
	: allocates memory for a sufficient number of clones More...

void	calc_allele_freqs ()
	calculate and store allele frequencies More...

void	reassortment_pattern ()
	Produce a random reassortement pattern. More...

void	crossover_pattern ()
	Choose a number of crossover points and produce a crossover pattern. More...

int	add_recombinants ()
	Pair and mate sexual gametes. More...

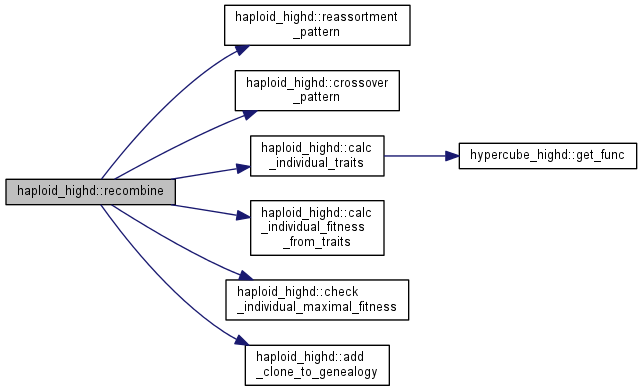

int	recombine (int parent1, int parent2)
	Recombine two genotypes parent1 and parent2 to produce two new genotypes. More...

int	recombine_crossover (int parent1, int parent2, int ng)

void	calc_fitness_stat ()
	Calculate and store fitness population statistics. More...

void	calc_trait_stat ()
	Calculate and store trait population statistics and covariances. More...

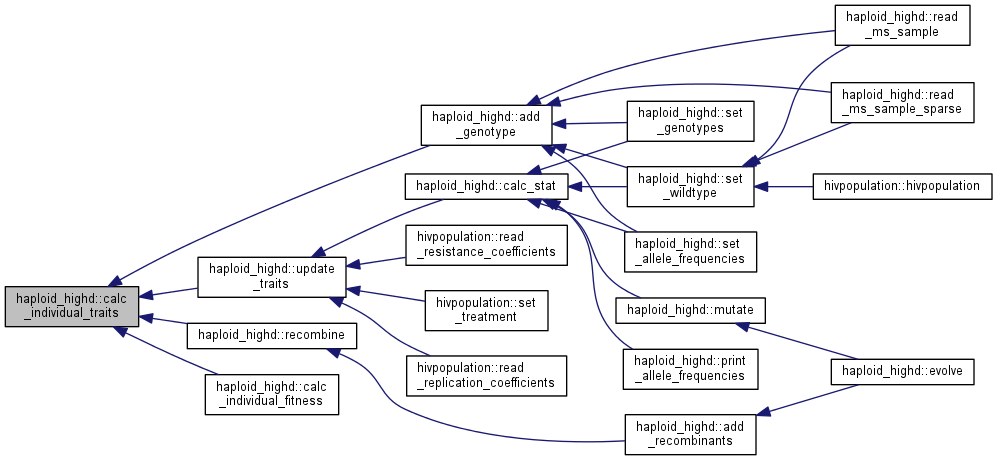

void	calc_individual_traits (clone_t &tempgt)
	Calculate traits of the chosen clone. More...

void	calc_individual_fitness (clone_t &tempgt)
	Calculate fitness of a particular clone. More...

void	calc_individual_traits (int clonenum)

void	calc_individual_fitness (int clonenum)

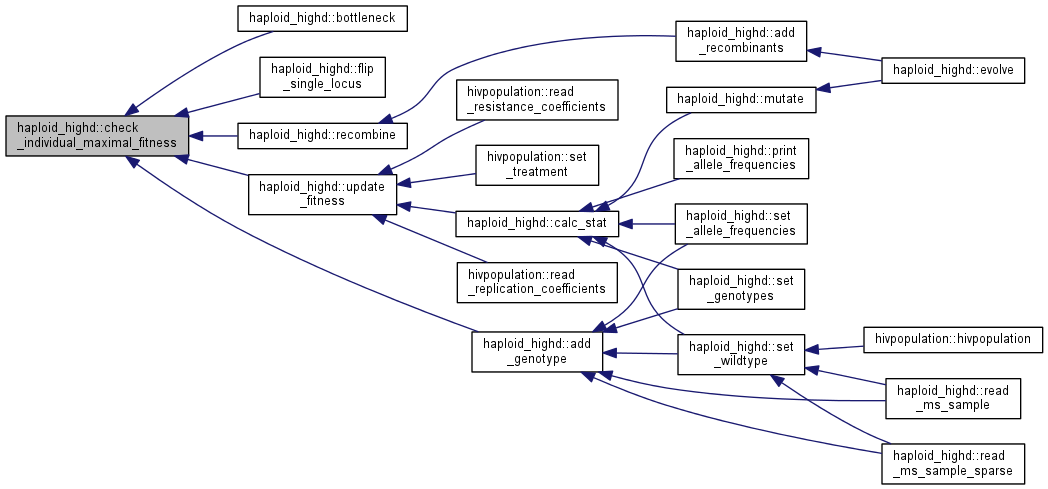

void	check_individual_maximal_fitness (clone_t &tempgt)

double	get_trait_difference (clone_t &tempgt1, clone_t &tempgt2, vector< int > &diffpos, int traitnum)
	Calculate trait difference between two clones. More...

virtual void	calc_individual_fitness_from_traits (clone_t &tempgt)
	Calculate fitness from traits of the chosen clone. More...

virtual void	calc_individual_fitness_from_traits (int clonenum)

void	add_clone_to_genealogy (int locus, int dest, int parent, int left, int right, int cs, int n)

Protected Attributes
gsl_rng *	evo_generator

gsl_rng *	label_generator

int	seed

vector< int >	random_sample

int	number_of_loci

int	population_size

int	number_of_traits

int	generation

int	number_of_clones

double	mutation_rate

double	participation_ratio

int	last_clone

bool	allele_frequencies_up_to_date

double *	allele_frequencies

double *	gamete_allele_frequencies

double *	chi1

double **	chi2

bool	all_polymorphic

vector< int >	ancestral_state

vector< poly_t >	polymorphism

vector< poly_t >	fixed_mutations

vector< int >	number_of_mutations

double	outcrossing_rate_effective

int *	genome

int *	crossovers

vector< int >	sex_gametes

double	fitness_max

stat_t	fitness_stat

stat_t *	trait_stat

double **	trait_covariance

double *	trait_weights

bool	track_genealogy

Detailed Description

Population class for high-dimensional simulations.

This class is the main object storing the state of and enabling the manipulation of populations with long genomes ( \(L\)) larger than 20.

Both asexual and sexual populations can be simulated. Since asexual populations under selection are often structured as a small list of large clones, the class stores the clones and their sizes instead of the individuals.

Class methods give access to a variety of information on the population, including:

the fitness distribution;
summary statistics of fitness and other phenotypic trits;
genetic structure (linkage disequilibrium, allele frequencies, number of clones).

Constructor & Destructor Documentation

haploid_highd::haploid_highd	(	int	L_in = `0`,
		int	rng_seed = `0`,
		int	n_o_traits = `1`,
		bool	all_polymorphic_in = `false`
	)

Default constructor.

The population objects are initialized, but neither the random generator is initialized nor the memory for traits, gametes etc. is allocated. Please call set_up() before using the class.

Note: The sequence is assumed to be linear (not circular). You can change this by hand if you wish so.

Here is the call graph for this function:

haploid_highd::~haploid_highd ( )

virtual

Destructor.

Memory is released here.

Member Function Documentation

void haploid_highd::add_clone_to_genealogy	(	int	locus,
		int	dest,
		int	parent,
		int	left,
		int	right,
		int	cs,
		int	n
	)

protected

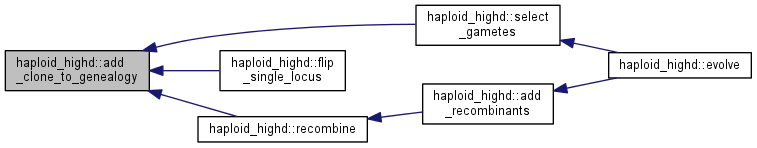

Here is the caller graph for this function:

int haploid_highd::add_fitness_coefficient	(	double	value,
		vector< int >	loci
	)

inline

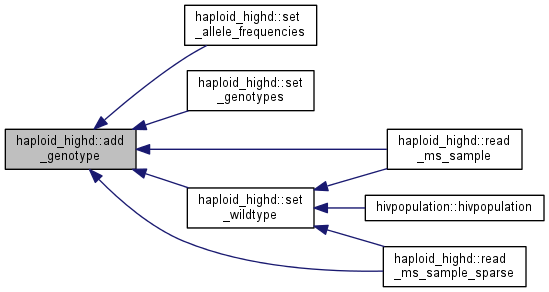

void haploid_highd::add_genotype	(	boost::dynamic_bitset<>	genotype,
		int	n = `1`
	)

Add the genotype specified by a bitset to the current population in in n copies.

Parameters

genotype	genotype being added
n	number of copies of that genotype

Note: this function also calculates the traits and fitness of the new individual.

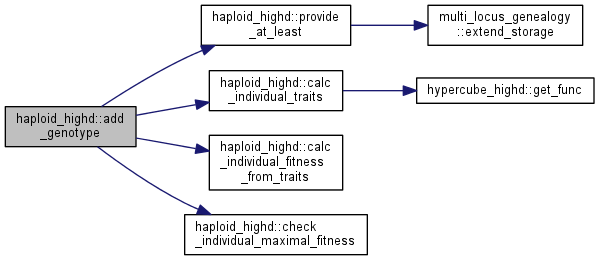

Here is the call graph for this function:

Here is the caller graph for this function:

int haploid_highd::add_recombinants ( )

protected

Pair and mate sexual gametes.

Returns: zero if successful, nonzero otherwise

Using the previously produced list of sex_gametes, pair them at random and mate

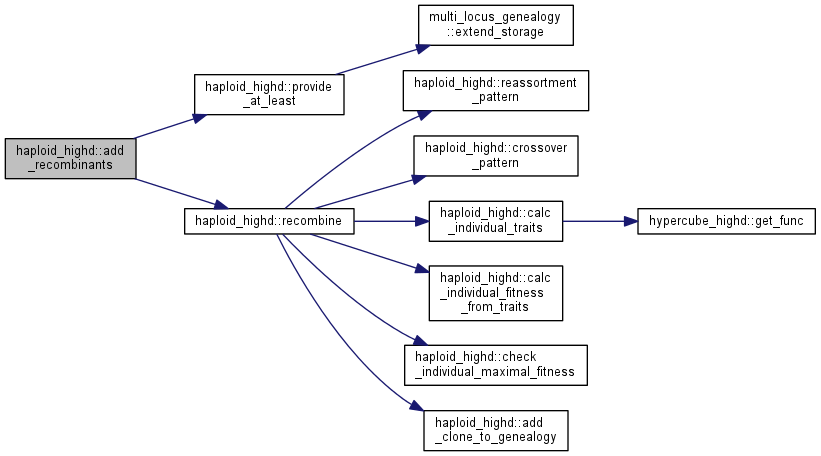

Here is the call graph for this function:

Here is the caller graph for this function:

int haploid_highd::add_trait_coefficient	(	double	value,
		vector< int >	loci,
		int	t = `0`
	)

inline

Here is the caller graph for this function:

int haploid_highd::bottleneck ( int size_of_bottleneck )

Cause a bottleneck in the population size.

Parameters

size_of_bottleneck number of individuals to leave alive (approximate)

Returns: zero if successful, error codes otherwise

The bottleneck is performed as follows. Each clone is traded in for a smaller one with size given by a Poisson random number around the new population size times the clone frequency. This function should therefore almost conserve genotype frequencies, except for rare genotypes that are lost.

Here is the call graph for this function:

void haploid_highd::calc_allele_freqs ( )

protected

calculate and store allele frequencies

Note: the allele frequencies are available in the allele_frequencies attribute.

Here is the caller graph for this function:

void haploid_highd::calc_fitness_stat ( )

protected

Calculate and store fitness population statistics.

The fitness statistics are stored in fitness_stat.

Note: this function assumes that fitness is up to date. If you are not sure, call update_traits() and update_fitness() first.

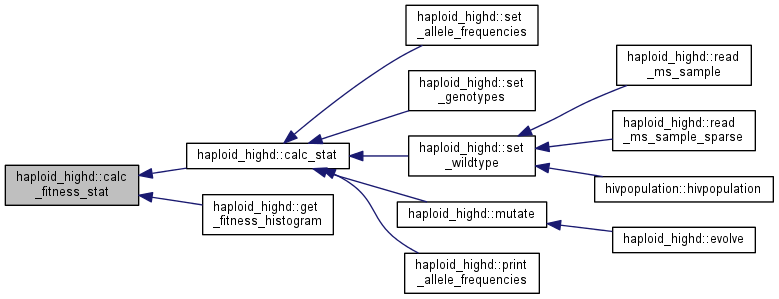

Here is the caller graph for this function:

void haploid_highd::calc_individual_fitness ( clone_t & tempgt )

protected

Calculate fitness of a particular clone.

Parameters

tempgt clone whose fitness is being calculated

Note: this function also updates the traits information for the same clone, because the phenotype is needed to calculate fitness. If you have already calculated the traits, you can rely calc_individual_fitness_from_traits.

Here is the call graph for this function:

void haploid_highd::calc_individual_fitness ( int clonenum )

inlineprotected

Here is the call graph for this function:

Here is the caller graph for this function:

void haploid_highd::calc_individual_fitness_from_traits ( clone_t & tempgt )

protectedvirtual

Calculate fitness from traits of the chosen clone.

Parameters

tempgt clone whose fitness is to be calculated

This function is linear in the traits with weights equal to trait_weights. By default, only the first weight is different from zero.

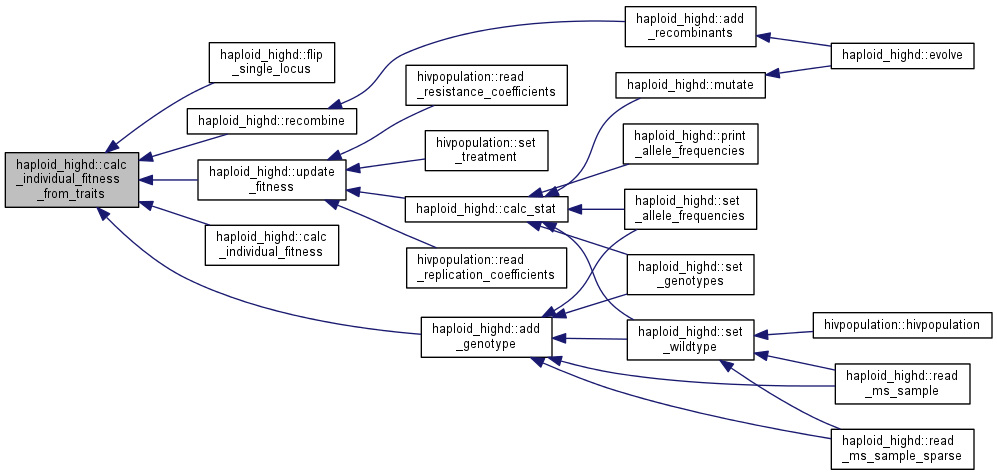

Here is the caller graph for this function:

virtual void haploid_highd::calc_individual_fitness_from_traits ( int clonenum )

inlineprotectedvirtual

Here is the call graph for this function:

Here is the caller graph for this function:

void haploid_highd::calc_individual_traits ( clone_t & tempgt )

protected

Calculate traits of the chosen clone.

Parameters

tempgt clone whose traits are to be calculated

Here is the call graph for this function:

Here is the caller graph for this function:

void haploid_highd::calc_individual_traits ( int clonenum )

inlineprotected

Here is the call graph for this function:

Here is the caller graph for this function:

void haploid_highd::calc_stat ( )

Calculate trait and fitness statistics and allele frequences.

Four things are done in a row:

traits are updated
fitness is updated based on the new traits
statistics of traits and fitness are calculated
allele freqs are calculated

Note: This function is quite expensive. Please use its subblocks whenever possible, and rely on this only when you want to make sure, at the expense of performance, that everything is up to date.

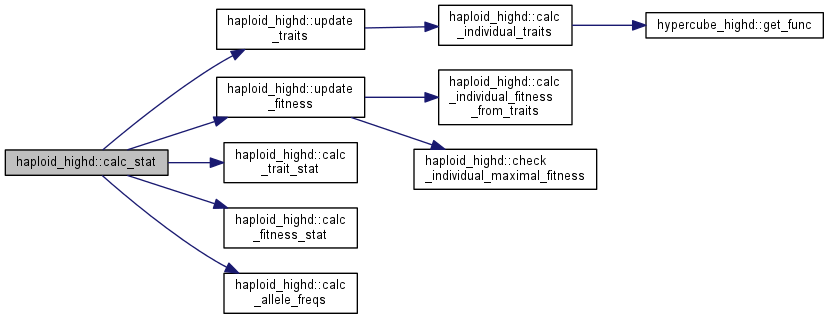

Here is the call graph for this function:

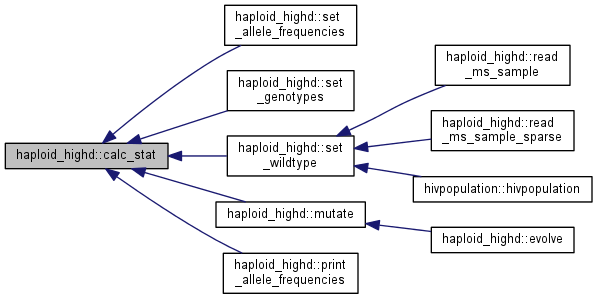

Here is the caller graph for this function:

void haploid_highd::calc_trait_stat ( )

protected

Calculate and store trait population statistics and covariances.

The traits statistics are stored in traits_stat.

Note: this function assumes that traits are up to date. If you are not sure, call update_traits() first.

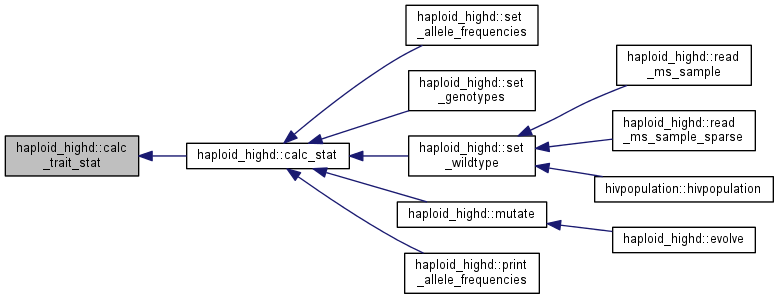

Here is the caller graph for this function:

void haploid_highd::check_individual_maximal_fitness ( clone_t & tempgt )

inlineprotected

Here is the caller graph for this function:

void haploid_highd::clear_fitness ( )

inline

void haploid_highd::clear_trait ( int t = 0 )

inline

void haploid_highd::clear_traits ( )

inline

void haploid_highd::crossover_pattern ( )

protected

Choose a number of crossover points and produce a crossover pattern.

Returns: crossover pattern

A typical crossover pattern would be 0000111100011111101101.

Here is the caller graph for this function:

int haploid_highd::distance_Hamming	(	unsigned int	clone1,
		unsigned int	clone2,
		vector< unsigned int * > *	chunks = `NULL`,
		unsigned int	every = `1`
	)

inline

Here is the call graph for this function:

Here is the caller graph for this function:

int haploid_highd::distance_Hamming	(	boost::dynamic_bitset<>	gt1,
		boost::dynamic_bitset<>	gt2,
		vector< unsigned int * > *	chunks = `NULL`,
		unsigned int	every = `1`
	)

Calculate Hamming distance between two sequences.

Parameters

gt1	first sequence
gt2	second sequence
chunks	(pointer to) vector of ranges (C pairs), e.g. ((0,10), (25, 28), (68, 70))
every	check only every X sites, starting from the first of each chunk

Note: you cannot use every without chunks.

Note: every chunk is a C array of length 2, i.e. a pointer to lower boundary of the interval. Thus we have the following situation:

chunks is of type vector <unsigned int *> *
*chunks is of type vector <unsigned int *>
(*chunks)[i] is of type *unsigned int
(*chunks)[i][0] is of type unsigned int, and indicates the initial site for this chunk
(*chunks)[i][1] is of type unsigned int, and indicates the (final site +1) for this chunk

As a consequence, for each chunk, chunk[1] - chunk[0] is the length of the chunk.

Returns: Hamming distance, not normalized

When you prepare the vector of chunks for this function, please use C++ methods (new) that take care of memory management, or be very careful about memory leaks.

Note: this function is overloaded with simpler arguments (e.g. if you want to use clone indices).

int haploid_highd::evolve ( int gen = 1 )

Evolve for some generations under the specified conditions.

The order of steps performed is

selection
recombination
mutation but should not be important except for extremely high selection coefficients and/or very short times, for which the discrete nature of the Fisher-Wright model becomes relevant.

Parameters

gen	number of generations.

Returns: zero if successful, error code in the faulty step otherwise

Note: if an error in encountered, evolution is stopped after the function that created the problem. Typical errors include extinction or the opposite, offspring explosion.

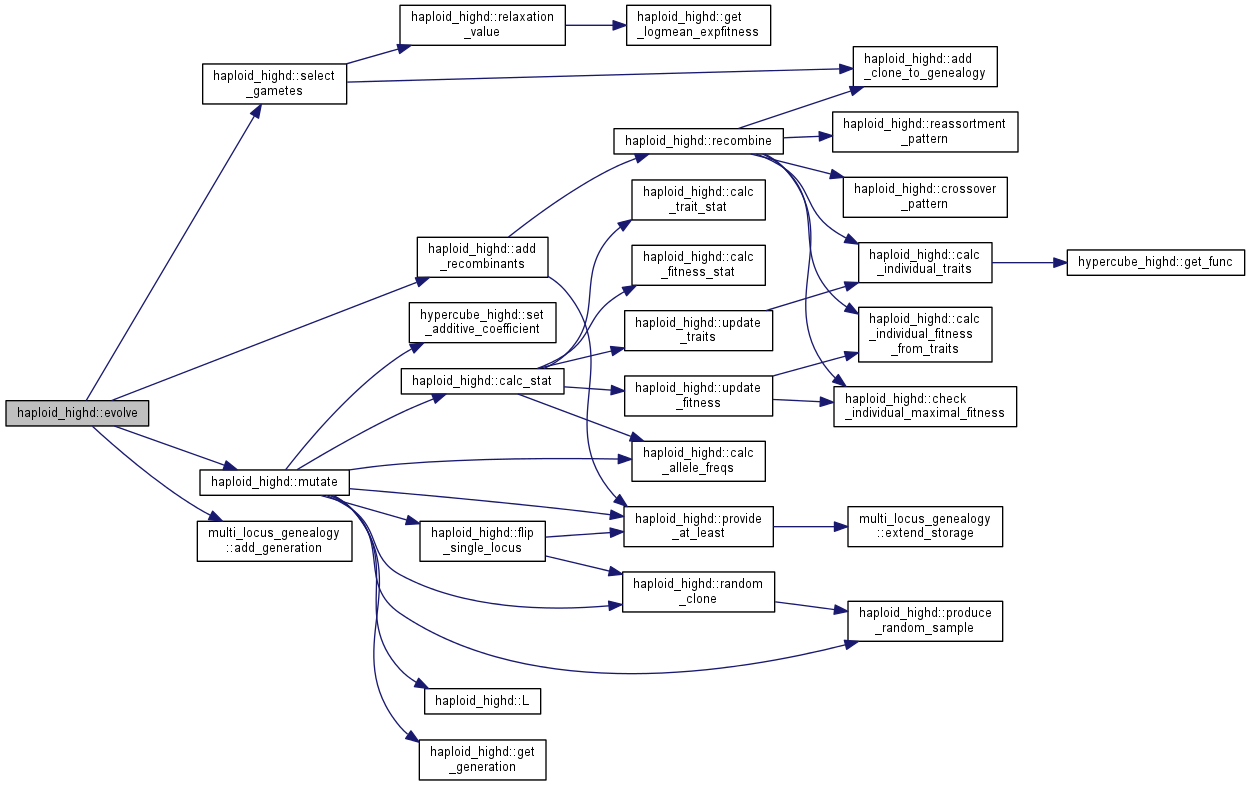

Here is the call graph for this function:

unsigned int haploid_highd::flip_single_locus ( int locus )

Flip a spin at a specific locus in random individual.

Parameters

locus position of the locus to flip

Returns: index of the new clone

Note: this function calls flip_single_locus(unsigned int clonenum, int locus).

Here is the call graph for this function:

Here is the caller graph for this function:

unsigned int haploid_highd::flip_single_locus	(	unsigned int	clonenum,
		int	locus
	)

protected

Flip a spin (locus) in individual.

Parameters

clonenum	the individual whose locus is being flipped
locus	position of the locus to flip

This function creates a new clone and adds it to the population, and assigns it a fitness.

Note: This might produce duplicate clones since the mutant clone produced might already exist. Duplicates can be merged by the member unique_clones()

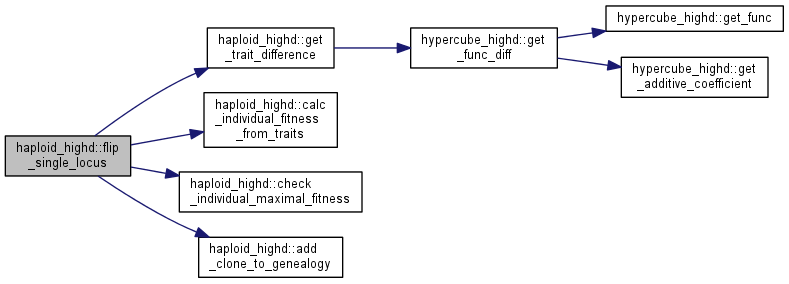

Here is the call graph for this function:

double haploid_highd::get_allele_frequency ( int l )

inline

double haploid_highd::get_chi ( int l )

inline

double haploid_highd::get_chi2	(	int	locus1,
		int	locus2
	)

inline

int haploid_highd::get_clone_size ( int n )

inline

double haploid_highd::get_derived_allele_frequency ( int l )

inline

double haploid_highd::get_derived_chi ( int l )

inline

int haploid_highd::get_divergence_histogram	(	gsl_histogram **	hist,
		unsigned int	bins = `10`,
		vector< unsigned int * > *	chunks = `NULL`,
		unsigned int	every = `1`,
		unsigned int	n_sample = `1000`
	)

Get histogram of divergence from the [00...0] bitset.

Parameters

hist	pointer to the gsl_histogram to fill
bins	number of bins in the histogram

Note: an antialiasing algorithm is used to enforce integer bin widths. Note: because of the antialiasing requirement, the last bin might be underrepresented. Note: the number of used bins in the output might be smaller than requested, depending on sample size and antialiasing.

Parameters

chunks	(pointer to) vector of ranges (C pairs), e.g. ((0,10), (25, 28), (68, 70))
every	check only every X sites, starting from the first of each chunk

Note: you cannot use every without chunks.

Note: every chunk is a C array of length 2, i.e. a pointer to lower boundary of the interval. Thus we have the following situation:

chunks is of type vector <unsigned int *> *
*chunks is of type vector <unsigned int *>
(*chunks)[i] is of type *unsigned int
(*chunks)[i][0] is of type unsigned int, and indicates the initial site for this chunk
(*chunks)[i][1] is of type unsigned int, and indicates the (final site +1) for this chunk

As a consequence, for each chunk, chunk[1] - chunk[0] is the length of the chunk.

Parameters

n_sample size of the random sample to use (the whole population is often too large)

Returns: zero if successful, error codes otherwise

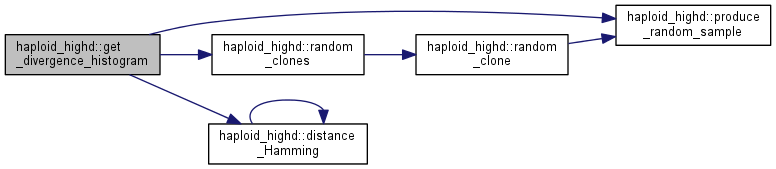

Here is the call graph for this function:

stat_t haploid_highd::get_divergence_statistics ( unsigned int n_sample = 1000 )

Calculate mean and variance of the divergence from the [00...0] bitset.

Parameters

n_sample size of the statistical sample to use (the whole pop is often too large)

Returns: mean and variance of the divergence in a stat_t

Here is the call graph for this function:

int haploid_highd::get_diversity_histogram	(	gsl_histogram **	hist,
		unsigned int	bins = `10`,
		vector< unsigned int * > *	chunks = `NULL`,
		unsigned int	every = `1`,
		unsigned int	n_sample = `1000`
	)

Get histogram of diversity in the population (mutual Hamming distance)

Parameters

hist	pointer to the gsl_histogram to fill
bins	number of bins in the histogram

Note: an antialiasing algorithm is used to enforce integer bin widths. Note: because of the antialiasing requirement, the last bin might be underrepresented. Note: the number of used bins in the output might be smaller than requested, depending on sample size and antialiasing.

Parameters

chunks	(pointer to) vector of ranges (C pairs), e.g. ((0,10), (25, 28), (68, 70))
every	check only every X sites, starting from the first of each chunk

Note: you cannot use every without chunks.

Note: every chunk is a C array of length 2, i.e. a pointer to lower boundary of the interval. Thus we have the following situation:

chunks is of type vector <unsigned int *> *
*chunks is of type vector <unsigned int *>
(*chunks)[i] is of type *unsigned int
(*chunks)[i][0] is of type unsigned int, and indicates the initial site for this chunk
(*chunks)[i][1] is of type unsigned int, and indicates the (final site +1) for this chunk

As a consequence, for each chunk, chunk[1] - chunk[0] is the length of the chunk.

Parameters

n_sample size of the random sample to use (the whole population is often too large)

Returns: zero if successful, error codes otherwise

Here is the call graph for this function:

stat_t haploid_highd::get_diversity_statistics ( unsigned int n_sample = 1000 )

Calculate diversity in the current population (Hamming distance between pairs of sequences)

Parameters

n_sample size of the statistical sample to use (the whole pop is often too large)

Returns: mean and variance of the diversity in a stat_t

Here is the call graph for this function:

double haploid_highd::get_fitness ( int n )

inline

int haploid_highd::get_fitness_histogram	(	gsl_histogram **	hist,
		unsigned int	bins = `10`,
		unsigned int	n_sample = `1000`
	)

Calculate histogram of fitness from traits.

Parameters

hist	pointer to the gsl_histogram to fill
bins	number of bins in the histogram

Note: the output histogram might have less bins than requested if the sample size is too small.

Parameters

n_sample size of the random sample to use (the whole population is often too large)

Returns: zero if successful, error codes otherwise

There is a small problem here, namely that sometimes the fitness distribution has a horrible tail which messes up the calculation of the bin width. Thus we first calculate the fitness average and variance, and then set the bin width so that the deleterious tail is within 2 sigma or so.

Note: this function allocates memory for the histogram only if there is no binning error. If you get HP_NOBINSERR, no memory is allocated. The user is expected to release the memory manually.

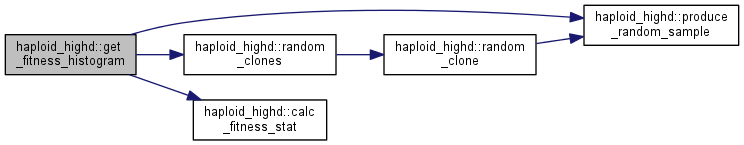

Here is the call graph for this function:

stat_t haploid_highd::get_fitness_statistics ( )

inline

vector<poly_t> haploid_highd::get_fixed_mutations ( )

inline

int haploid_highd::get_generation ( )

inline

Here is the caller graph for this function:

string haploid_highd::get_genotype_string ( unsigned int i )

inline

double haploid_highd::get_LD	(	int	locus1,
		int	locus2
	)

inline

double haploid_highd::get_logmean_expfitness ( )

protected

Get the population exp-average of fitness, used for keeping the population size fixed.

Returns: the population exp-average of fitness

Mathematically, this is \( \log\left( \left< e^(F-F_{max}) \right> \right) \). The baseline is \( F_{max} \) in order to avoid exponentiating large numbers.

Here is the caller graph for this function:

double haploid_highd::get_max_fitness ( )

inline

double haploid_highd::get_moment	(	int	locus1,
		int	locus2
	)

inline

double haploid_highd::get_mutation_rate ( )

inline

vector< int > haploid_highd::get_nonempty_clones ( )

Obtain a list of the good clones.

Returns: vector of clone indices

int haploid_highd::get_number_of_clones ( )

inline

Here is the caller graph for this function:

int haploid_highd::get_number_of_loci ( )

inline

Here is the caller graph for this function:

vector<int> haploid_highd::get_number_of_mutations ( )

inline

int haploid_highd::get_number_of_traits ( )

inline

vector< double > haploid_highd::get_pair_frequencies ( vector< vector< int > > * loci )

Get the joint frequency of two alleles, for a vector of allele pairs.

Parameters

loci	pointer to a vector of allele pairs. Each element of loci must be a vector of length 2.

Returns: vector of joint frequencies.

Here is the call graph for this function:

double haploid_highd::get_pair_frequency	(	int	locus1,
		int	locus2
	)

Get the joint frequency of two alleles.

Parameters

locus1	position of the first allele.
locus2	position of the second allele.

Returns: the joint frequency of the two alleles.

Here is the caller graph for this function:

double haploid_highd::get_participation_ratio ( )

inline

vector<poly_t> haploid_highd::get_polymorphisms ( )

inline

int haploid_highd::get_population_size ( )

inline

Here is the caller graph for this function:

int haploid_highd::get_random_seed ( )

protected

Get a random seed from /dev/urandom.

Returns: non-deterministic, random seed

Here is the caller graph for this function:

double haploid_highd::get_trait	(	int	n,
		int	t = `0`
	)

inline

double haploid_highd::get_trait_covariance	(	int	t1,
		int	t2
	)

inline

double haploid_highd::get_trait_difference	(	clone_t &	tempgt1,
		clone_t &	tempgt2,
		vector< int > &	diffpos,
		int	traitnum
	)

protected

Calculate trait difference between two clones.

Parameters

tempgt1	first clone
tempgt2	second clone
diffpos	positions at which the genotypes differ
traitnum	number of the trait to calculate

Returns: vector of differences

The operation is, for each trait, tempgt1 - tempgt2.

Here is the call graph for this function:

Here is the caller graph for this function:

vector<coeff_t> haploid_highd::get_trait_epistasis ( int t = 0 )

inline

stat_t haploid_highd::get_trait_statistics ( int t = 0 )

inline

double haploid_highd::get_trait_weight ( int t )

inline

bool haploid_highd::is_all_polymorphic ( )

inline

int haploid_highd::L ( )

inline

Here is the caller graph for this function:

int haploid_highd::mutate ( )

protected

Mutate random clones at random loci (all loci)

Note: for efficiency reasons, if the mutation rate is zero, an if cycle skips the body altogether. The user can therefore call this function safely even if in non-mutating populations, without loss of performance.

Function is now rewritten to allow for multiple mutants. TODO: Poisson conditional on at least one FIXME!: all_polymorphic assumes that all additive effects are set, i.e. that locus equals the index of the coefficient in the vector of additive effects

Here is the call graph for this function:

Here is the caller graph for this function:

int haploid_highd::N ( )

inline

int haploid_highd::new_generation ( )

protected

int haploid_highd::partition_cumulative ( vector< unsigned int > & partition_cum )

protected

Calculate the cumulative partition of sequences into clones.

Parameters

partition_cum the vector to be filled

Returns: vector of cumulative clone sizes

Example: if there are three clones of sizes (100, 22, 3) this function will fill the vector (100, 122, 125). The last element is of course the population size See also get_population_size.

Note: the vector is taken in input by reference for performance reasons, since it can get huge.

int haploid_highd::print_allele_frequencies ( ostream & out )

Print all allele frequencies into a stream provided.

Parameters

out	stream to put the allele frequencies (usually a file or stdout)

Returns: zero if successful, nonzero otherwise

Here is the call graph for this function:

void haploid_highd::produce_random_sample ( int size = 1000 )

protected

Produce and store a random sample of the population for stochastic processes.

Parameters

size	size of the sample

Produce a random sample of genotypes (labeled by their clone of origin) which is to be used for mutations and sampling. The vector random_sample exists for efficiency reasons, for it is faster to call the random number generator once than many times.

Note: if you want to get random clones, please use random_clone().

Here is the caller graph for this function:

int haploid_highd::provide_at_least ( int n )

protected

: allocates memory for a sufficient number of clones

: number of empty clones required

Here is the call graph for this function:

Here is the caller graph for this function:

int haploid_highd::random_clone ( )

Get a random clone from the population.

Returns: the index of the random clone

The probability density function from which the individual is chosen is flat over the population (larger clones are proportionally more likely to be returned here).

Note: for efficiency reasons, the class keeps a storage of random clone indices. If you need much more than, say, 1000 random clones at a time, please call produce_random_sample with the required size in advance.

Here is the call graph for this function:

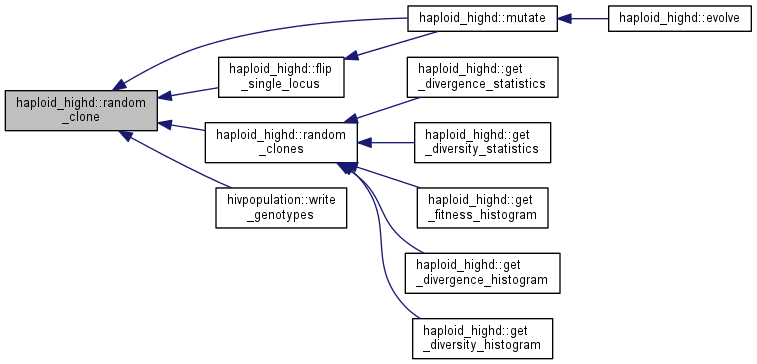

Here is the caller graph for this function:

int haploid_highd::random_clones	(	unsigned int	n_o_individuals,
		vector< int > *	sample
	)

Sample random individuals from the population.

Parameters

n_o_individuals	number of individuals to sample
sample	pointer to vector where to put the result

Returns: zero if successful, nonzero otherwise

The results are not returned as a vector for performance reasons, as one might want to get a lot of random clones. *sample may be not empty (but must be allocated). In any case, clone numbers of the sampled individuals are appended to *sample. Hence, you can use this function iteratively (although there might not be a good reason to do so).

Here is the call graph for this function:

Here is the caller graph for this function:

int haploid_highd::read_ms_sample	(	istream &	gts,
		int	skip_locus,
		int	multiplicity
	)

Read the output of Hudson's ms and use it to initialize the genotype distribution.

Parameters

gts	genotypes output of ms
skip_locus	position of the locus to be skipped
multiplicity	number of times each genotype is added

Returns: zero if successful, error codes otherwise

ms loci are fed into the genotype with a locus that is skipped. Each ms genotype is added multiple times.

Here is the call graph for this function:

int haploid_highd::read_ms_sample_sparse	(	istream &	gts,
		int	skip_locus,
		int	multiplicity,
		int	distance
	)

Read the output of Hudson's ms and use it to initialize the genotype distribution.

Parameters

gts	genotypes output of ms
skip_locus	positionof the locus to be skipped
multiplicity	number of times each genotype must be added
distance	distance between two polymorphic sites

Returns: zero if successful, error codes otherwise

ms loci are fed into the genotype at distance "distance", i.e. there are distance-1 monomorphic loci. One locus is skipped. Each ms genotype is added multiple times.

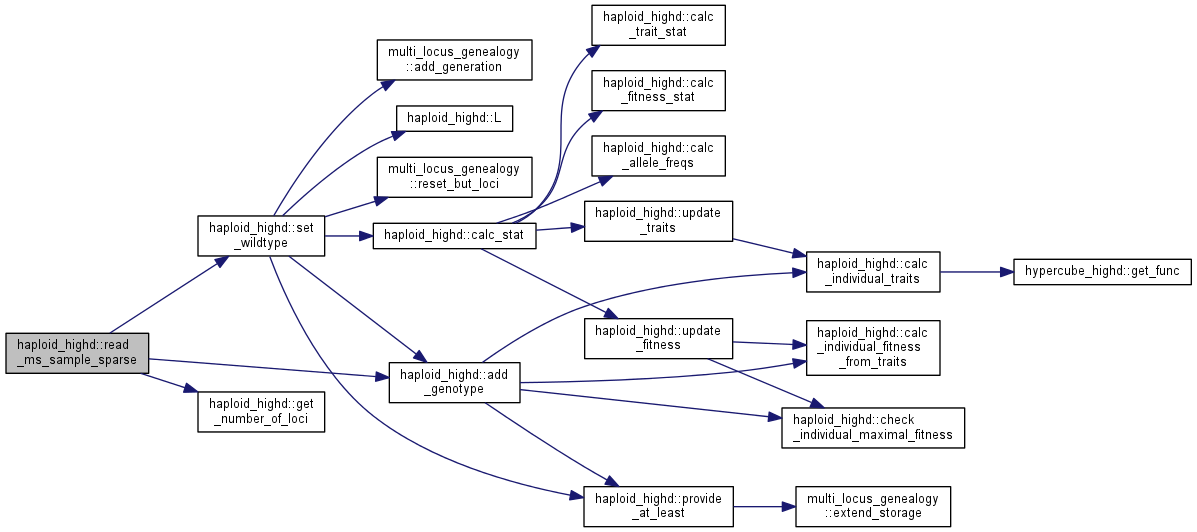

Here is the call graph for this function:

void haploid_highd::reassortment_pattern ( )

protected

Produce a random reassortement pattern.

Returns: reassortement pattern

Here is the caller graph for this function:

int haploid_highd::recombine	(	int	parent1,
		int	parent2
	)

protected

Recombine two genotypes parent1 and parent2 to produce two new genotypes.

Parameters

parent1	first parent
parent2	second parent

Returns: zero if successful

The new genotypes are stored in new_pop at positions ng and ng+1.

Here is the call graph for this function:

Here is the caller graph for this function:

int haploid_highd::recombine_crossover	(	int	parent1,
		int	parent2,
		int	ng
	)

protected

double haploid_highd::relaxation_value ( )

protected

Get the log of the exp-average fitness plus relaxation term.

Returns: baseline relative to which growth rates are measured, i.e. the current mean fitness plus the term that causes the population size to relax to carrying_capacity

Here is the call graph for this function:

Here is the caller graph for this function:

int haploid_highd::select_gametes ( )

protected

Generate offspring according to fitness (selection) and segregate some for sexual mating.

Returns: zero if successful, error codes otherwise

Random Poisson offspring numbers are drawn from all parents, proportionally to their fitness. A fraction r of all offspring are designated for sexual reproduction, while the remainder (1-r) reproduces by exact duplication (mutations are introduced later). The population size relaxes to a carrying capacity, i.e. selection is soft but the population size is not exactly fixed.

Here is the call graph for this function:

Here is the caller graph for this function:

int haploid_highd::set_allele_frequencies	(	double *	freq,
		unsigned long	N_in
	)

Initialize population in linkage equilibrium.

Parameters

freq	target allele frequencies
N_in	number of individuals to be created

Returns: zero if successful, error codes otherwise

Note: the carrying capacity is set equal to N_in if it is still unset.

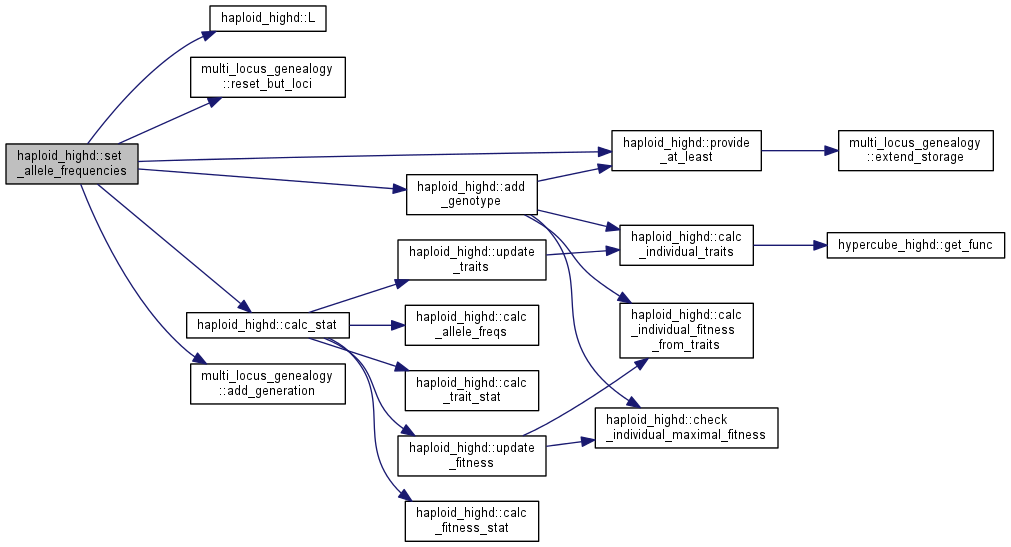

Here is the call graph for this function:

void haploid_highd::set_generation ( int g )

inline

int haploid_highd::set_genotypes ( vector< genotype_value_pair_t > gt )

Initialize the population with genotype counts.

Parameters

gt	vector of genotype_value_pair with genotypes and sizes

Returns: 0 if successful, nonzero otherwise.

Note: the population size is set as the total sum of counts of all genotypes. The carrying capacity is also set to the same number if it is still unset.

Here is the call graph for this function:

void haploid_highd::set_mutation_rate ( double m )

inline

void haploid_highd::set_random_epistasis ( double epistasis_std )

inline

void haploid_highd::set_random_trait_epistasis	(	double	epistasis_std,
		int	traitnumber = `0`
	)

inline

void haploid_highd::set_trait_weights ( double * weights )

inline

int haploid_highd::set_wildtype ( unsigned long N_in )

Initialize a wildtype population (00...0)

Parameters

N_in	number of individuals

Returns: 0 if successful, nonzero otherwise.

Note: the carrying capacity is set equal to N_in if it is still unset.

Here is the call graph for this function:

Here is the caller graph for this function:

void haploid_highd::shuffle_genotypes ( )

protected

int haploid_highd::track_locus_genealogy ( vector< int > loci )

Designates as set of loci to have their genealogy tracked.

locus to be tracked

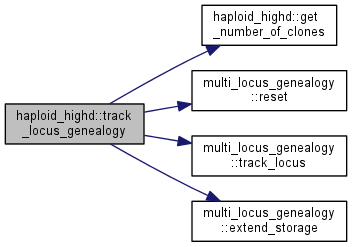

Here is the call graph for this function:

void haploid_highd::unique_clones ( )

Remove duplicate clones.

The library does not usually check whether two clones with the same genotype are present, but this can happen in case of recurrent mutation. This function merges duplicates.

Note: this is only needed for studying the clone structure. Evolution itself does not need to make sure that clones are unique.

void haploid_highd::update_fitness ( )

For each clone, update fitness assuming traits are already up to date.

Here is the call graph for this function:

Here is the caller graph for this function:

void haploid_highd::update_traits ( )

For each clone, recalculate its traits.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

bool haploid_highd::all_polymorphic

protected

double* haploid_highd::allele_frequencies

protected

bool haploid_highd::allele_frequencies_up_to_date

protected

vector<int> haploid_highd::ancestral_state

protected

int haploid_highd::carrying_capacity

double* haploid_highd::chi1

protected

double** haploid_highd::chi2

protected

bool haploid_highd::circular

double haploid_highd::crossover_rate

int* haploid_highd::crossovers

protected

gsl_rng* haploid_highd::evo_generator

protected

double haploid_highd::fitness_max

protected

stat_t haploid_highd::fitness_stat

protected

vector<poly_t> haploid_highd::fixed_mutations

protected

double* haploid_highd::gamete_allele_frequencies

protected

multi_locus_genealogy haploid_highd::genealogy

int haploid_highd::generation

protected

int* haploid_highd::genome

protected

double haploid_highd::growth_rate

gsl_rng* haploid_highd::label_generator

protected

int haploid_highd::last_clone

protected

double haploid_highd::mutation_rate

protected

int haploid_highd::number_of_clones

protected

int haploid_highd::number_of_loci

protected

vector<int> haploid_highd::number_of_mutations

protected

int haploid_highd::number_of_traits

protected

double haploid_highd::outcrossing_rate

double haploid_highd::outcrossing_rate_effective

protected

double haploid_highd::participation_ratio

protected

vector<poly_t> haploid_highd::polymorphism

protected

vector<clone_t> haploid_highd::population

int haploid_highd::population_size

protected

vector<int> haploid_highd::random_sample

protected

int haploid_highd::recombination_model

int haploid_highd::seed

protected

vector<int> haploid_highd::sex_gametes

protected

bool haploid_highd::track_genealogy

protected

hypercube_highd* haploid_highd::trait

double** haploid_highd::trait_covariance

protected

stat_t* haploid_highd::trait_stat

protected

double* haploid_highd::trait_weights

protected

The documentation for this class was generated from the following files:

src/ffpopsim_highd.h
src/haploid_highd.cpp

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
