The TriFingerPlatform Class¶
The TriFingerPlatform class provides access to the
simulation of the TriFinger platform using the same interface as for the real
robot.
For a detailed explanation of the software interface on the real robot, and the logic behind it, please check the paper on the open-source version of the challenge robot (both have identical software).
On the real robot, we are using time series for all robot data like actions
and observations. The user does not send actions directly to the robot but
appends them to the “desired actions” time series which serves as a queue.
At each time step, identified by a time index t, the action at position t is
taken from the “desired actions” time series and processed. At the same time an
observation is acquired from the robot and added to the “observation” time
series. This means that the effect of the desired action a_t is not yet

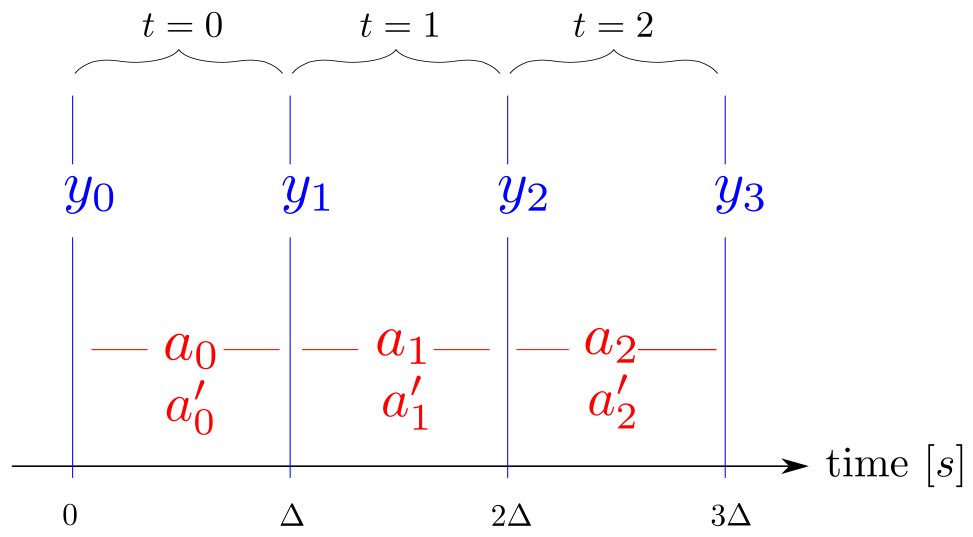

visible in the observation y_t as is illustrated below. (a'_t
corresponds to the applied action, see Desired vs Applied Action)
In the software, the method
append_desired_action() is used to
append actions to the time series. It returns the time index t at which the
appended action will be executed. Methods like
get_observation() expect a time index as
input and will return the data corresponding to this time step. If the given
time index refers to a point in the future, these methods will block and wait
until that point is reached.
This allows for very simple code that is automatically executed at the control rate of the robot:
platform = rrc_simulation.TriFingerPlatform()
zero_torque_action = platform.Action()
t = platform.append_desired_action(zero_torque_action)
# get the first observation
observation = platform.get_robot_observation(t)
while True:
action = smart_algorithm_to_compute_next_action(observation)
t = platform.append_desired_action(action)
# The t given above refers to the moment the given action will be
# executed. Right now, this is in the future, so the following call
# will automatically wait until the action is actually applied to the
# platform
observation = platform.get_robot_observation(t)
As the simulation is not real-time critical, the behaviour is a bit different here:
append_desired_action()will directly apply the action and step the simulation.There is no actual time series. The API in the simulation follows the same principle to make the transition to the real robot easier. However, it is implemented with a buffer size of 1, so the getter methods only provide data for the current time step.
It is possible to access information from t + 1. In a typical gym environment, it is expected that the observation returned by
step(action)belongs to the moment after the given action is executed (this corresponds to the time index t + 1). To make it easier to get started, we therefore allow to access the observations of this time index in the simulation.
For more information on the API of the real robot (which will be used in the later phases of the challenge), see our publication TriFinger: An Open-Source Robot for Learning Dexterity.
Usage Example¶
#!/usr/bin/env python3
"""Simple demo on how to use the TriFingerPlatform interface."""
import time
import numpy as np
import rrc_simulation
if __name__ == "__main__":
platform = rrc_simulation.TriFingerPlatform(visualization=True)
# Move the fingers to random positions
while True:
position = platform.spaces.robot_position.gym.sample()
finger_action = platform.Action(position=position)
# apply action for a few steps, so the fingers can move to the target
# position and stay there for a while
for _ in range(100):
t = platform.append_desired_action(finger_action)
# sleep after each step so that the visualization happens in real
# time
time.sleep(platform.get_time_step())
# show the latest observations
robot_observation = platform.get_robot_observation(t)
print("Finger0 Joint Positions: %s" % robot_observation.position[:3])
cube_pose = platform.get_object_pose(t)
print("Cube Position (x, y, z): %s" % cube_pose.position)
Desired vs Applied Action¶
The action given by the user is called the desired action. This action may be
altered before it is actually applied on the robot, e.g. by some safety checks
limiting torque and velocity. This altered action is called the applied
action. You may use
get_applied_action() to see what action
actually got applied on the robot.
API Documentation¶
-
class
rrc_simulation.TriFingerPlatform(visualization=False, initial_robot_position=None, initial_object_pose=None, enable_cameras=False)[source]¶ Wrapper around the simulation providing the same interface as
robot_interfaces::TriFingerPlatformFrontend.The following methods of the robot_interfaces counterpart are not supported:
get_robot_status()
wait_until_timeindex()
-
__init__(visualization=False, initial_robot_position=None, initial_object_pose=None, enable_cameras=False)[source]¶ Initialize.
- Parameters
visualization (bool) – Set to true to run visualization.
initial_robot_position – Initial robot joint angles
initial_object_pose – Initial pose for the manipulation object. Can be any object with attributes
position(x, y, z) andorientation(x, y, z, w). This is optional, if not set, a random pose will be sampled.enable_cameras (bool) – Set to true to enable camera observations. By default this is disabled as rendering of images takes a lot of computational power. Therefore the cameras should only be enabled if the images are actually used.
-
Action(torque=None, position=None)¶
-
get_current_timeindex()¶
-
get_timestamp_ms(t)¶
-
get_desired_action(t)¶
-
get_applied_action(t)¶
-
get_robot_observation(t)¶ Get observation of the robot state (joint angles, torques, etc.). See
rrc_simulation.SimFinger.get_observation().
-
get_object_pose(t)[source]¶ Get object pose at time step t.
- Parameters
t – The time index of the step for which the object pose is requested. Only the value returned by the last call of
append_desired_action()is valid.- Returns
Pose of the object. Values come directly from the simulation without adding noise, so the confidence is 1.0.
- Return type
- Raises
ValueError – If invalid time index
tis passed.
-
get_camera_observation(t)[source]¶ Get camera observation at time step t.
- Parameters
t – The time index of the step for which the observation is requested. Only the value returned by the last call of
append_desired_action()is valid.- Returns
Observations of the three cameras. Images are rendered in the simulation. Note that they are not optimized to look realistically.
- Return type
- Raises
ValueError – If invalid time index
tis passed.
-
class
rrc_simulation.ObjectPose[source]¶ A pure-python copy of trifinger_object_tracking::ObjectPose.
-
confidence¶ Estimate of the confidence for this pose observation.
- Type
float
-
orientation¶ Orientation of the object as (x, y, z, w) quaternion.
- Type
array
-
position¶ Position (x, y, z) of the object. Units are meters.
- Type
array
-
timestamp¶ Timestamp when the pose was observed.
- Type
float
-
-
class
rrc_simulation.CameraObservation[source]¶ Pure-python copy of trifinger_cameras.camera.CameraObservation.
-
image¶ The image.
- Type
array
-
timestamp¶ Timestamp when the image was received.
- Type
float
-
-
class
rrc_simulation.TriCameraObservation[source]¶ Pure-python copy of trifinger_cameras.tricamera.TriCameraObservation.
-
cameras¶ List of observations of cameras “camera60”, “camera180” and “camera300” (in this order).
- Type
list of
CameraObservation
-
